Q-G CONNECTOR-ADAPTERS
CONNECTORS & RECEPTACLES
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
Q-G ? CONNECTOR-ADAPTERS
27
321
322
323
324
383A
384A

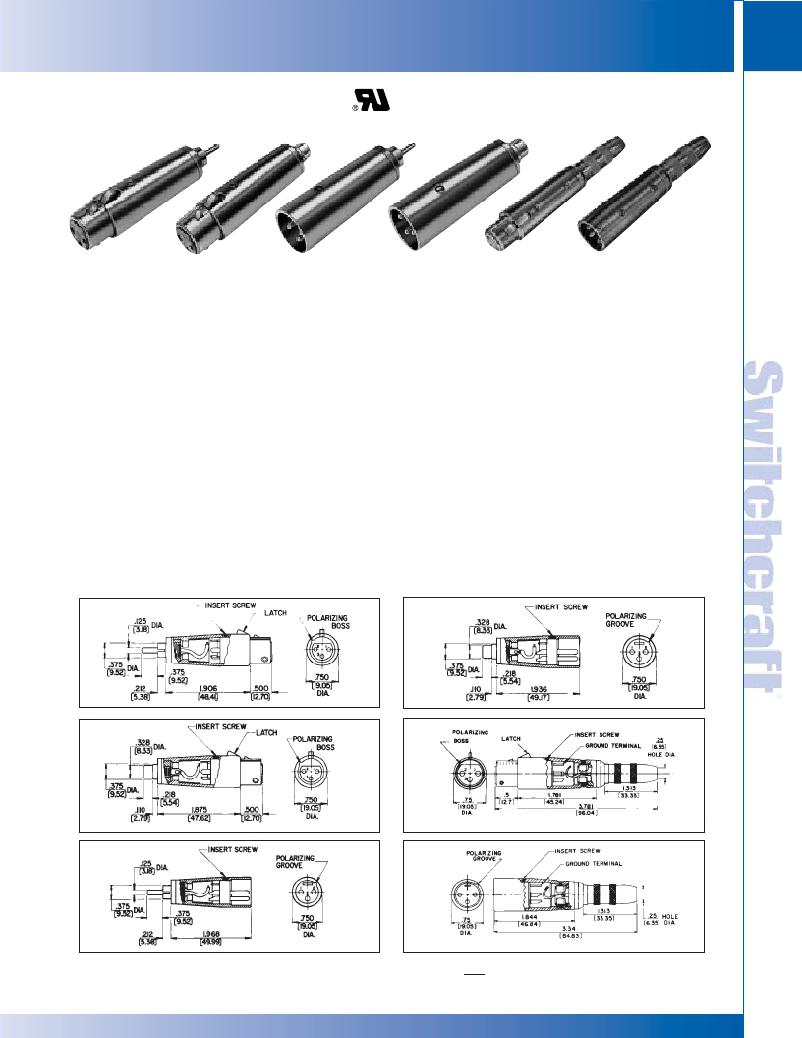

Switchcraft Q-G ? Connector-Adapters, designed to solve
common interconnection problems, are ideally suited to the
interconnection of microphones, mixers, amplifiers, public
address and sound reinforcement equipment, broadcast
equipment, and any other component that does not have an
appropriate mating connector. All are completely shielded,
and incorporate the high quality and outstanding design features
of the Switchcraft line of Q-G Audio Connectors, including:
1. Separate ground terminal.
2. Ground Contactors.
3. Captive Design ? Insert Screw
4. High impact Thermoplastic Insulation.
MATERIAL SPECIFICATIONS
PHONE JACK AND PLUG TERMINATIONS
Shell: Copper alloy, nickel-plated.
Insulation: Paper-base phenolic.
Plug Tip and Sleeve: Copper alloy, nickel-plated.
Phone Pin and Plug Housing: Copper alloy, nickel-plated.
Phono Plug Insulation: Rigid plastic.
Phono Jack Housing: Steel, copper alloy-plated,
tarnish-resistant.
321
322
323
Phono Jack Pin Receptacle: Brass, silver-plated,
copper alloy.
Phono Jack Insulation: Thermoplastic.
321. Phono plug to 3-contact female audio-connector
(Switchcraft ? A3F).
322. Phono jack to 3-contact female audio-connector
(Switchcraft ? A3F).
323. Phono plug to 3-pin male audio-connector
(Switchcraft A3M).
324. Phono jack to 3-pin male audio-connector
(Switchcraft ? A3M).
383A. Three-contact female audio-connector
(Switchcraft ? A3F) to standard .250" (6.35 mm)
diameter 3-conductor extension phone jack.
384A. Three-pin male audio connector
(Switchcraft ? A3M) to standard .250" (6.35 mm)
diameter 3-conductor extension phone jack.
324
383A
384A
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
